1.12 EPSON S3200 original spray heads, 1 pass speed up to 1020M ²/ H
2. New design scheme, high standard industrial printing, independent motion control, ink path, print drive, stable and reliable operation
3. High-precision control, the whole machine adopts full-servo network control, and the paper collection and placement, stepping, scanning and printing are accurate
4. High efficiency production: 12 head production, H12 maximum output up to 1020M ²/ H
Constant tension stepping motor, can print thin paper 31g/M ² (After painting)
5. Intelligent operating system, intelligent roll change, automatic positioning of the winding/unwinding to the loading and unloading position, high-definition/high-speed production modes, one-key switching
6. Automatic cleaning function of nozzle, intelligent and convenient operation

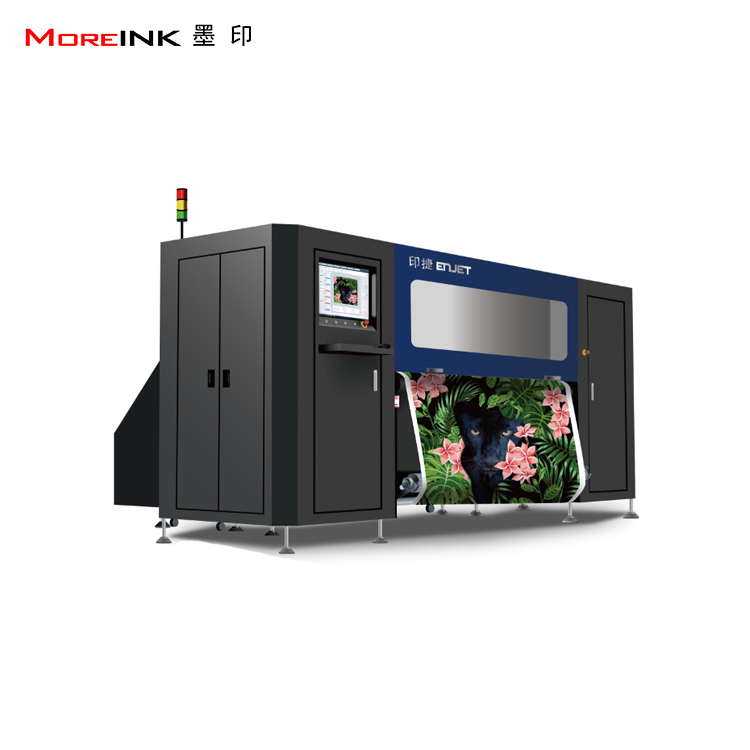

| Model | ENJET H12 | ||
| Max Printing Width | 1900mm | ||
| Applicable Medium | Transfer Paper/Wood Grain Paper/Film/Wallpaper | ||
| Max Roll Diameter | 1000mm | ||
| Ink Type | Sublimation/AQ Pigment/Reactive | ||
| Power Supply | 3 Phase 380VAC Power 17kW | ||
| PrinterDimension(LxWxH) | 2550x4000x1900(mm) | ||
| Printer Weight | 1800kg | ||
| Production | |||
| model | pass | High Speed Mode 300*（300+300）dpi（㎡/h） | High Speed Mode 300*（300+300）dpi（m/h） |
H12 12 heads 4 colors EPSON S3200 | 1 | 1020 | 662 |
| 2 | 510 | 409 | |
| 4 | 255 | 227 | |
