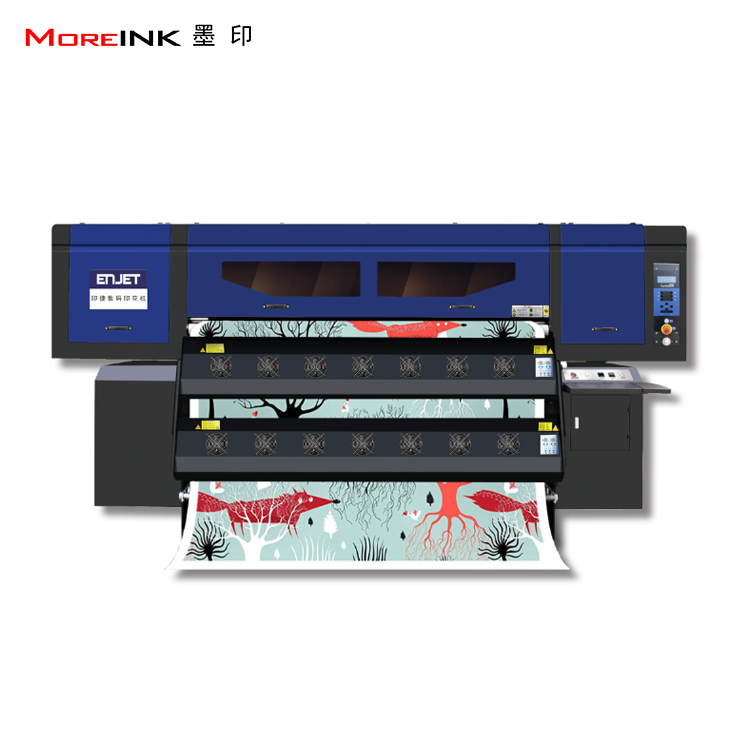

ENJET E78-190 Sublimation Printer

Printhead Quantity: 8

Printhead: Epson I3200-A1

Print Width: 1900mm

Print Colors: CMYK/CMYK+4 COLORS

Max.resolution (DPI) :3200DPI

Max speed CMYK: 1pass 370㎡/h

Ink Type: Sublimation Ink,Water Based Pigment InkRIp Software: Printfactory, Maintop, Flexiprint, Onyx, Neostampa


1. Anti-collision small frame: The height of the nozzle can be adjusted freely according to different printing consumables. It is widely used and easy to adjust; anti-collision devices are added at both ends to provide more comprehensive safety protection for the nozzle.


2. Inflatable shaft type rewinding and unwinding system: During operation, there is no need to use other accessories to fix the printing medium, and the air pressure can be used to automatically adjust. Make the force uniform and make the paper run more smoothly. The unwinding and unwinding system supports unwinding and unwinding of 1,500-meter full rolls of 40 grams of paper, and supports a maximum roll diameter of 400mm. The unique swing bar in the rewinding and unwinding system ensures that the paper is evenly stressed during the entire printing process, and the rewinding is smooth and tight, avoiding loose rewinding.


3. The advanced intelligent nozzle cleaning and moisturizing device provides safe and convenient nozzle cleaning and maintenance functions, and the operation and maintenance are more convenient.


4. The fluorine rubber press roller imported from the United States prevents static electricity from flying ink, and the printing size is more accurate; the unique lifting device for the press roller can deal with the phenomenon of partial paper swelling during the printing process at any time.


5. Japanese THK silent linear guide rail, with stable movement and longer life, can effectively reduce the resistance and noise during the operation of the ink car during high-speed movement.


6. The default value of the firmware parameters has been set before leaving the factory, and there is basically no need to recalibrate before use, which is more convenient to use.


7. The new dislocation arrangement of nozzles


The new dislocation arrangement of nozzles solves the inconsistency of the left, middle and right effects on the printing platform, and improves the printing quality by at least 20%.



ENJET E78-190
PrintheadEpson I3200-A1Nozzle Quantity


Printhead Quantity8Print Width1900mm
Print ColorsCMYK/CMYK+4 COLORSPrint Height2-5mm
Max. resolution (DPI)


Media TransmitAuto Media Feeding andTaking-up System, Roll to Roll
Max speed CMYK(1.9m printing width, 59feather)1pass
Drying MethodExtra Dryer Device

Speed*Tested on linear printing without feather function

370㎡/hInk Supply MethodSiphon Positive Pressure Ink Supply
2pass185㎡/hHead Moisture MethodAuto Head Cleaning and Moisturizing

Print MediaTransfer Paper
Bulk Tank Capacity5L/15LMaterial TransmitInflatable Roller Auto Feeding and Take-upSystem
Ink TypeSublimation Ink,Water based Pigment InkTransmission InterfaceGigabit LAN
Max. Media Taking up (40g paper)1500mMax. Media Feeding(40g paper)2000m
Computer SystemWin7 64 Bit / Win10 64 BitFile FormsTIFF, JPG, EPS, PDF, etc.
Operate EnvironmentTemp.:15°C-30°Humidity:35°C-65°CRIp SoftwarePrintfactory, Maintop, Flexiprint, Onyx,Neostampa
Printer Size3725*1455*1810mm
Package Size3900*1340*2040mmPower Supply


Print Power: 1500W

Drver Power: Max.9000W

Computer ConfigurationHard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,CpU: Intel i5/i7, Gigabit LAN
Standard ConfigurationInk Level Alarm System


Machine Size:3725*1385*1810mm

Pakage Size:3870*1320*2020mm
